Home : Geometries : Chamfering

Facing and Centering/Chamfering

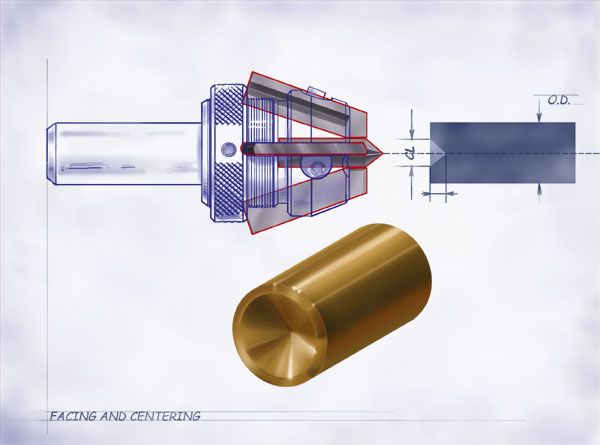

Genesee manufactures facing and centering tools using conventional blades in a hollow mill body. We also offer special indexable facing and centering tools using inserts as shown in this example.

The special indexable facing and centering tool is designed to face from a .310 diameter to 1.560 diameter using two No. TPMW 32.51 indexable inserts. The tool is provided with a special depth adjustable center drill or spotting drill as required.

Genesee hollow mills are ideal for facing, chamfering or centering bar stock or forgings. Click here for a Case History.

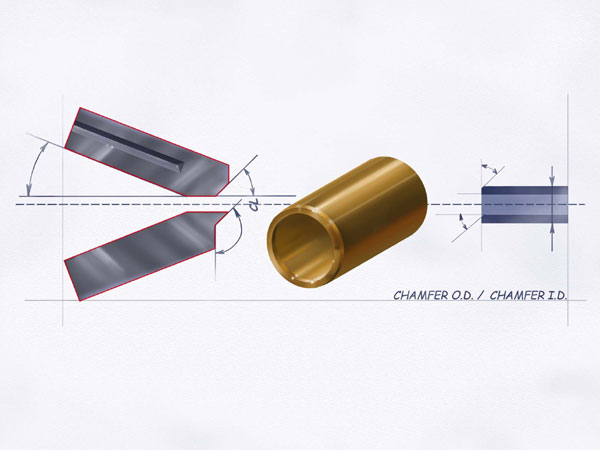

A major U.S. steel manufacturer required tooling for a bar stock chamfering machine to 1/4" long chamfer on steel bars ranging from 1/2" diameter to 2" diameter. GEN-DEX® is used to chamfer all sizes of bars at either 30° or 45° as needed. Click here for a Case History.


Click on the image for a more detailed view.


Blade Set


Tool with Spotting Drill
