Steps and Multiple Diameters

Increased productivity, decreased tool costs and faster feed rates are just some of the advantages of producing parts with steps and multiple diameters using Genesee Hollow Mills. The following examples illustrate these advantages and more

A Genesee GEN-DEX® hollow mill complete with insert holders for machining square shoulders and 45° chamfers replaced all prior tooling for producing three diameters on one part. Click here for Case History.


Click on the image for a more detailed view.

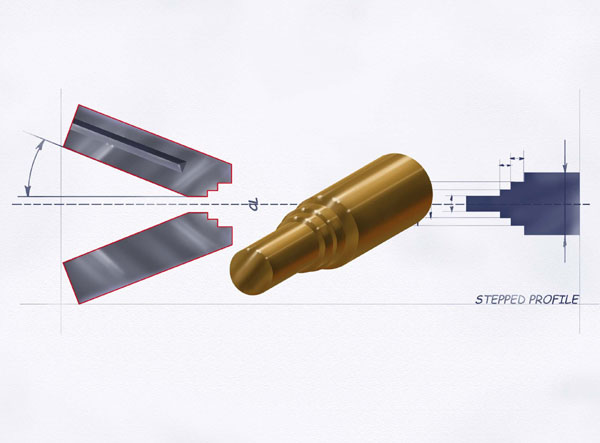

Blade Set

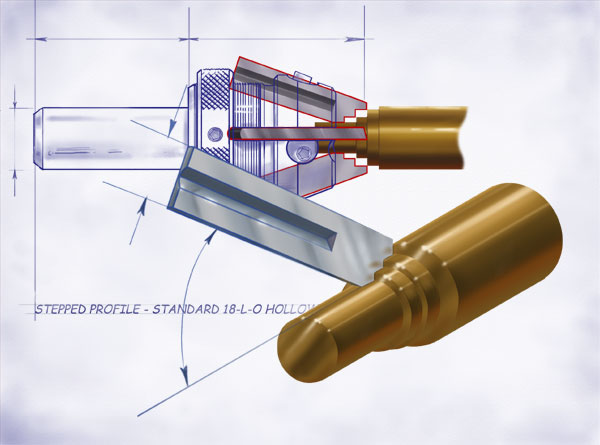

Blade Close-up

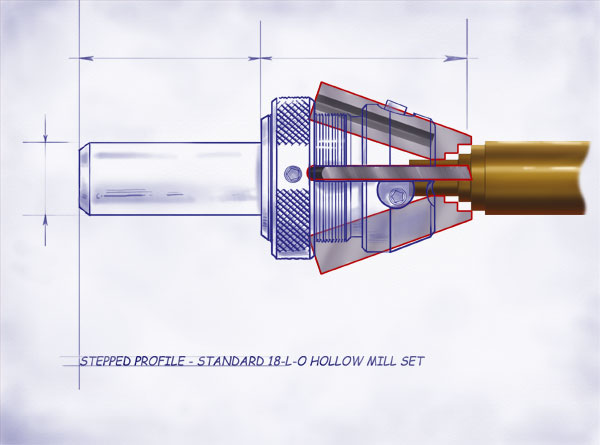

Blade Set in Tool

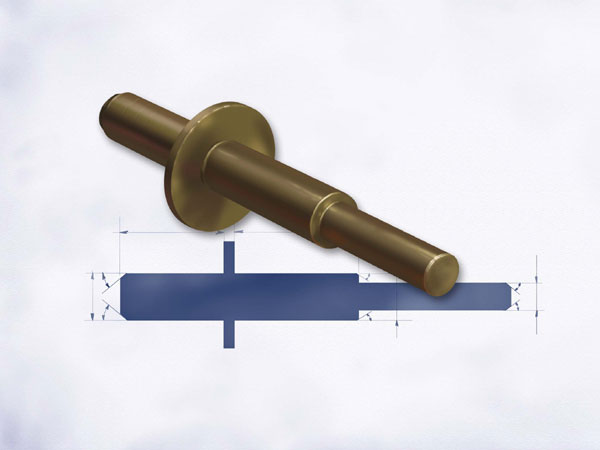

Automotive Component
