Tapers and Points

These examples illustrate the advantages of producing tapers and points with Genesee Hollow Mills. Where high production is required or desired this is a clear cut area where hollow milling significantly outperforms other turning methods.

Genesee will design the tool body and blades necessary to maximize your productivity and achieve consistent concentric parts. While in some cases a standard tool body is acceptable (dependent on material, length of turn and angle of taper), a specially-designed body is usually required.

Special Genesee inserted blade hollow mill was used for a combination taper and radius on this dental tool. Click here for Case History.

Special hollow mill with 4 HSS taper turning blades produce a 4 degree taper 1.65 inches long. With this method a part is produced every 1.6 seconds (time in cut).

Special GEN-DEX tool features four triangular inserts in four adjustable insert holders to produce 10 by 10mm taper on a high carbon steel automotive part in less than 1/2 second (time in cut).


Click on the image for a more detailed view.

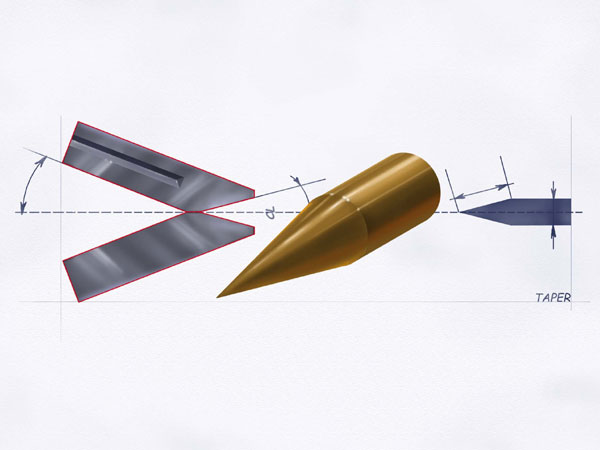

Taper Example

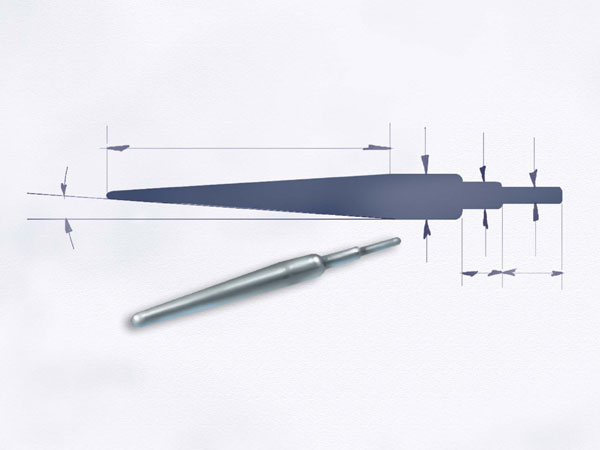

Taper and Radius on Dental Tool
