Valve, Pipe Thread and Fitting Forms

The following examples illustrate the advantages of producing valves, pipe thread and fitting forms with Genesee Hollow Mills.

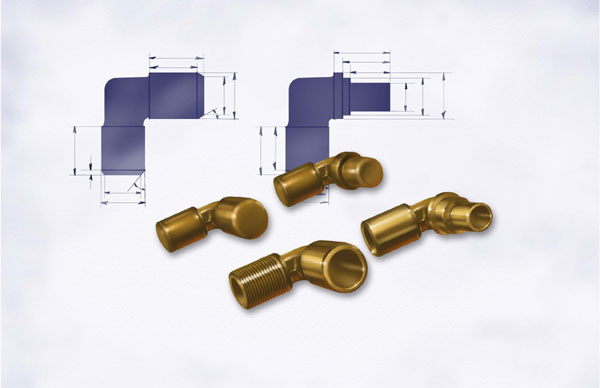

A special Genesee Hollow mill with formed blades enables manufacturer to form-turn part in one operation. In the illustrated male elbow body, blades hollow mill the diameter - 2 blades chamfer, 2 blades face, and a spot drill ensures concentricity for subsequent drilling. Click here for Case History

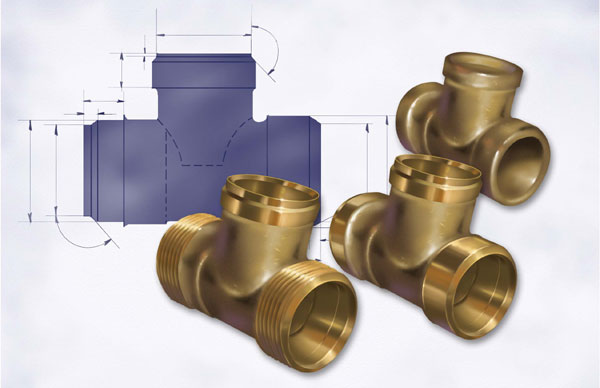

One special Genesee inserted blade hollow mill uses different sets of blades to produce three similar fitting ends of brass drain tees. Click here for Case History.

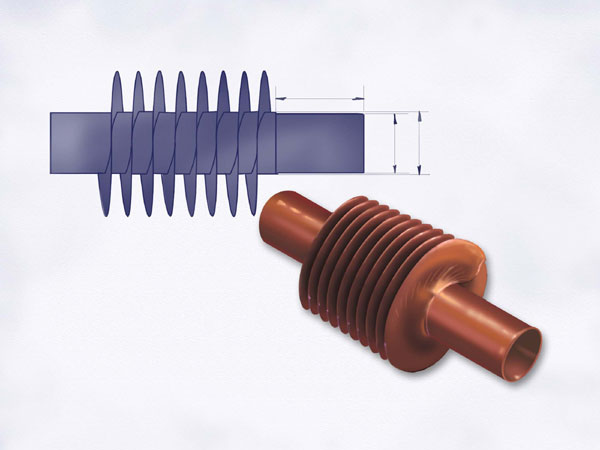

Genesee hollow mills are ideal when the material being removed presents special requirements such as the removal of fins on this copper component. Click here for Case History.


Click on the image for a more detailed view.


Plumbing Elbow


Plumbing Tee


Copper Tube
